*****Attention, spare part only in exchange*****

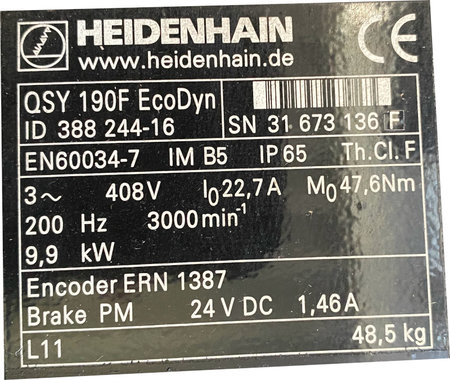

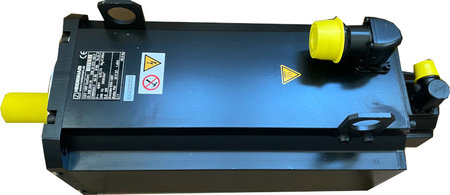

Heidenhain QSY 190F ECODYNE
ID: 388244-16
The engine was overhauled in 02/2023
Synchronous feed motor with backlash-free holding brake (permanent magnet) Shape, shaft end without key, rated speed 3000 rpm Maximum torque 150.0 NM Standstill torque 47.60 NM Standstill current 22.70 A Built-in encoder ERN 1387 Incremental motor encoder, cooling type and air flow direction self-cooling
Heidenhain QSY 190F ECODYNE
ID: 388244-16
The engine was overhauled in 02/2023
Synchronous feed motor with backlash-free holding brake (permanent magnet) Shape, shaft end without key, rated speed 3000 rpm Maximum torque 150.0 NM Standstill torque 47.60 NM Standstill current 22.70 A Built-in encoder ERN 1387 Incremental motor encoder, cooling type and air flow direction self-cooling
