Indramat TDM1.2-030-300-W1-220 AC servo drive

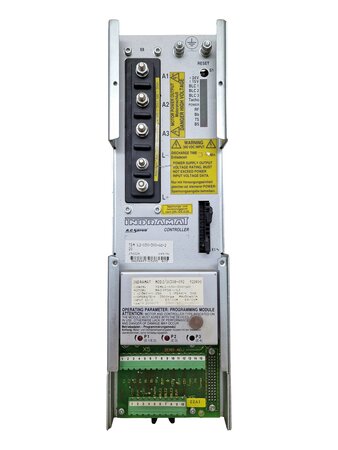

Used Indramat TDM1.2-030-300-W1-220 AC servo drive from the TDM 1 series in good condition. The servo drive module was developed for use with compatible Indramat MAC AC servo motors in modular drive systems.
Typical applications include CNC machine tools, machining centres, production machinery and industrial automation systems. The controller processes speed setpoints from the machine control and controls the connected servo motor.
According to the previously available information, the unit was removed from an operational machine and checked before removal.
Features and benefits
- Original Indramat AC servo drive
- Type TDM1.2-030-300-W1-220
- 30 A type and peak current
- 300 V DC link circuit
- Integrated forced ventilation
- 220 V AC cooling fan supply
- Installed MOD2/1X308-092 programming module
- Suitable as a replacement for existing Indramat drive systems
- Used in good condition
Servo drive technical data
Manufacturer: Indramat
Product type: AC servo drive module
Series: TDM 1
Type: TDM1.2-030-300-W1-220
Manufacturer ID / part number: 236224
Type current: 30 A
Peak current: 30 A
Continuous current: 30 A
DC link voltage: 300 V DC ±15%
Continuous power: 9 kW

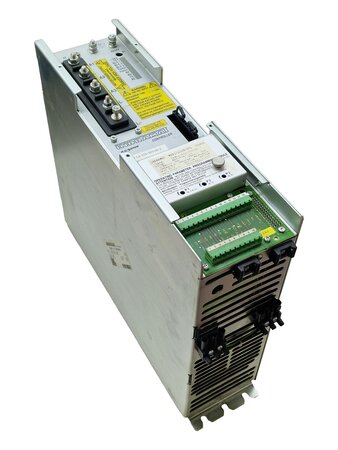

Cooling: forced ventilation by integrated fan
Cooling fan supply: 220 V AC
Cooling fan frequency: 50 to 60 Hz
Protection rating: IP10
Permissible ambient temperature at rated data: +5 to +45 °C
Weight according to manufacturer documentation: approximately 10 kg
Condition: used in good condition

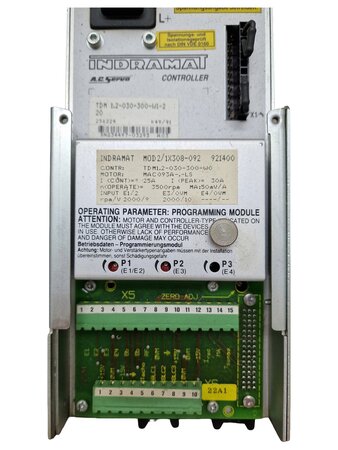

Programming module
Installed programming module: MOD2/1X308-092
Module number: 921400
Controller assignment shown on module: TDM1.2-030-300-W0
Motor assignment shown on module: MAC093A--LS
Configured continuous current: 25 A
Configured peak current: 30 A
Operating speed: 3500 rpm
Current measuring output MA: 50 mV/A
Input E1/E2: 2000 rpm at 9 V
Input E3/0VM: 2000 rpm at 10 V
Input E4/0VM: not assigned
Compatibility information
Before ordering and commissioning, the complete type designation, manufacturer ID, programming module, intended motor and existing machine configuration must be compared.
The servo drive nameplate identifies the unit as TDM1.2-030-300-W1-220. The installed programming module shows TDM1.2-030-300-W0 as its controller assignment. The suitability of this combination for the intended machine must therefore be checked against the relevant technical documentation before commissioning.
According to the manufacturer, the motor and controller types stated on the programming module must match the installed drive components. An incompatible configuration may result in reduced performance or damage.
Condition and scope of supply
The servo drive is used and in good condition. Age-related and usage-related cosmetic marks are present. The actual condition, nameplates and available connections are shown in the product images.
The scope of supply includes the pictured Indramat servo drive, the installed programming module and the existing cooling fan unit. Connection cables, additional drive components and documentation are not included.
